Hollis Katana2 Single - Sidemount Package
Your Dive. With A Side of Air.
The Katana 2 harness sets a standard in sidemount diving. Designed in collaboration with Edd Sorenson from Cave Adventurers, we developed a unique “Quick Fit System” which allows users to easily tailor the one-size-fits-all harness to their specific size or adjustment preference in a matter of minutes. We added more lift, more weight capacity, single and dual bladder options and the best quality materials Hollis has always been known for. Katana 2 is also the first sidemount harness in the world to be designed with closed circuit sidemount capability, with integrated mounts for the popular KISS sidewinder. Katana 2 breaks away from traditional designs and offers more customization and versatility.
Katana2 Specs
- “QFS” Quick Fit System offers fine tuning of the torso height between small and large divers for a true one size fits all
- Design allows for an “H” or “Y” style harness configuration, depending on user preference
- Lift capacity is 40lbs with innovative wing design to keep diver profile even lower than the competition and without the “turtle shell effect” which causes drag
- Standard weight capacity 20lbs, to offset added buoyancy in cold water with drysuits and thick undergarments
- Innovative top dump allows venting of gas with outbreaking trim or reaching behind the wing like in other designs
- Integrated sidemount CCR mount
- Single bladder option ideal for recreational sidemount with two cylinders or in a Drysuit for redundancy / Dual bladder option ideal for technical dives in a wetsuit
- Add on the SMS Regulator kit –preconfigured with all the necessary DCX 1st and 200LX 2ndstages, LP and HP hoses, two brass SPG’s and regulator necklace
- QFS one-size-fits-all design
- 2-year standard warranty
- Weight: 8.0 Lbs

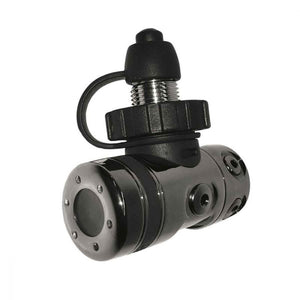

DCX First Stage
High performance over-balanced first stage provides progressively greater intermediate pressure as depth and gas density increases for superior gas delivery under the most extreme conditions.
Features:
- Swivel turret allows for ideal low pressure hose routing
- Environmental sealing prevents internal corrosion, contaminants, and icing of the first stage
- Designed to withstand the rigorous CE standard for coldwater performance
- More streamlined internal design makes it lighter weight than previous designs
- PVD* "industrial" plating.
- Unique over-balanced, diaphragm design - As the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a rate faster than ambient. This results in superior performance at depth.
- 2 HP ports and 5 LP ports for optimum hose routing
- 5th port allows for side-mount or twin cylinder set ups
- An environmental dry system keeps water out of the main spring chamber thus preventing ice buildup and keeping salt and contamination out.
Physical Vapor Deposition (PVD) is a time tested proven technology that has been used for decades in other industries and is now available for specific Hollis products. PVD is a collective set of processes used to deposit thin layers of material, typically in the range of few nanometers to several micrometers. This state of the art process provides a superior alternative to traditional “Chrome Plating”, is environmentally friendly and provides longer lasting durablity
200LX Second Stage
Every feature and detail of this new product provides you with the confidence of 40 years of manufacturing life support systems. The 200LX can be converted from a right-handed to left-handed hose configuration, in a manner of minutes without the use of specialty tools or calibration. The valve and every other metal component of the 200LX is “PVD” Industrial Plated, added to outperform and outlast any other regulator finish.
